Understanding Flexbox in React Native

Let's start with a simple example.

A container View component with three Text components.

//Our views<View style={styles.container}>
  <View style={styles.viewStyleOne}>
    <Text style={styles.textStyle}> 1 </Text>
  </View>  <View style={styles.viewStyleTwo}>
    <Text style={styles.textStyle}> 2 </Text>
  </View>  <View style={styles.viewStyleThree}>
    <Text style={styles.textStyle}> 3 </Text>
  </View></View>//Styleslet styles = StyleSheet.create({
  container: { backgroundColor:'#4286f4'},
  viewStyleOne: {
    width:40,
    height:40,
    justifyContent: 'center',
    alignItems:'center',
    backgroundColor:'#b642f4'
  },
  textStyle:{
    textAlign:'center'
  }
})

Which renders as so:

Initial View

Styling the Container

Now we add flex:1 to the container:

container: {
  backgroundColor:'#4286f4',
  flex: 1
}

This makes containers fill its parent, i.e. the whole screen.

flex: 1

Now we add:

container: {
  backgroundColor:'#4286f4',
  flex: 1,
  flexDirection:'row'
}

Each view’s flexDirection is set to a column by default but setting it to ‘row’ will change the orientation of the items in the container.

flex-direction set to ‘row’

Now we can control the orientation of the content using flexDirection.
Now let's add justifyContent and alignItems :

container:{
  backgroundColor:'#4286f4',
  flex: 1,
  flexDirection: 'row',
  justifyContent: 'flex-end',
  alignItems:'flex-start'
}

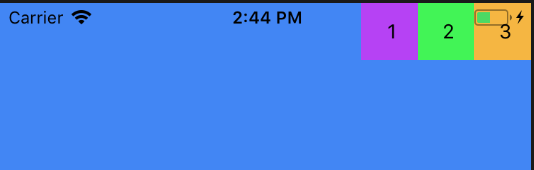

justify-content: ‘flex-end’

Similarly for:

container: {
  backgroundColor:'#4286f4',
  flex: 1,
  flexDirection: 'row',
  justifyContent: 'flex-end',
  alignItems:'flex-end'
}

Views will render like:

align-items:’flex-end’

• flexDirection determines the primary axis as ‘row’ or ‘column’.
• justifyContent determines the distribution of children along the primary axis.
• alignItems determines the alignment of children along the secondary axis.

To set items to center :

Items to center

justifyContent supports flex-start, center, flex-end, space-around, and space-between.

For space-around:

space-around

and space-between:




space-between

alignItems supports: flex-start, center, flex-end, and stretch.

Overriding the Container Style

If we need an item to override it’s defined as defined by the container we could use style the items individually.

alignSelf overrides alignItems and supports these options auto, flex-start, flex-end, center, stretch and baseline.

If we tell an item to align itself to flex-start,

alignSelf: 'flex-start'

It would end up like this:

telling the item to align at flex-start

flexGrow controls how much the item will grow relative to the rest of the flexible items inside the same container.

flexGrow: 1

Would render as:

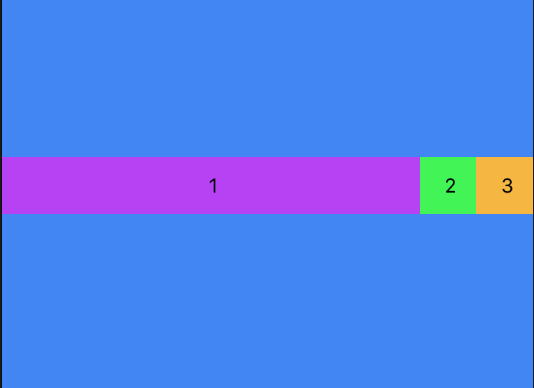

flex-grow

flexBasis controls the item size with percent. For eg:

flexBasis:50 //firstView style
flexBasis:20 //secondView style
flexBasis:30 //ThirdView style

flex-basis
